With the rapid growth of commercial drones in logistics, agriculture, security, and industrial inspection, efficient battery management has become a key factor affecting fleet operation. A large number of drones require reliable charging systems that can monitor battery status, optimize charging efficiency, and reduce maintenance complexity. Therefore, advanced battery management solutions are becoming increasingly important for autonomous drone operations.

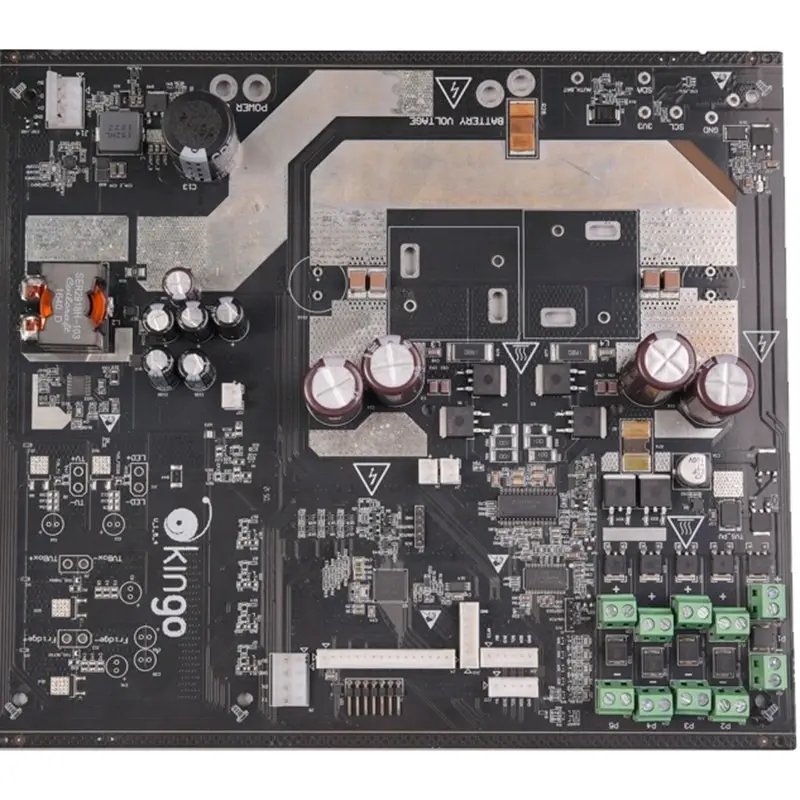

The BMS board for drone charging station is designed to provide intelligent charging control, real-time battery monitoring, and multi-protocol communication for modern drone fleets. By integrating precise power management and flexible communication interfaces, this board helps operators manage multiple charging stations more efficiently. Fully Hong provides professional PCB solutions for smart charging equipment and industrial electronic applications, supporting customers with reliable hardware designs.
Intelligent Charging Control Improves Drone Fleet Efficiency
For large-scale drone operations, charging speed and battery protection directly influence overall productivity. Traditional charging methods may lack accurate control, which can result in inconsistent charging performance or reduced battery lifespan. Therefore, an intelligent BMS solution is essential for maintaining stable battery conditions. The BMS board for drone charging station uses constant voltage (CV) and constant current (CC) charging control technology to optimize the charging process. During the initial charging stage, the system applies constant current mode to provide efficient power delivery. Then, when the battery approaches full capacity, it automatically switches to constant voltage mode to maintain voltage stability and prevent overcharging. Furthermore, the board features eight independent 3A power outputs, allowing multiple drone batteries to be charged simultaneously. This design improves charging efficiency while ensuring each battery receives stable and controlled power.
Multi-Protocol Communication Simplifies Fleet Management
Modern drone fleets require centralized monitoring and intelligent scheduling. Therefore, communication capability plays an important role in connecting charging stations with management platforms. This BMS board supports multiple communication methods, including RS485, UART serial communication, and USB interfaces. RS485 enables long-distance communication between multiple charging stations and central monitoring systems, making it suitable for large facilities. Meanwhile, UART allows direct communication with drone docking systems for real-time charging status updates. Additionally, the USB interface supports local configuration, firmware upgrades, and charging data management through PC software. As a result, operators can easily monitor battery conditions, adjust charging settings, and improve fleet management efficiency.
Advanced Protection Ensures Safe Battery Operation
Battery safety is critical for drone applications because frequent charging cycles place higher demands on battery reliability. Therefore, comprehensive protection functions are necessary to avoid potential failures. The BMS board integrates multiple safety mechanisms, including overcurrent protection, overvoltage protection, undervoltage protection, and thermal management. When abnormal current conditions occur, the system can quickly stop output to protect connected batteries and charging equipment. Moreover, built-in NTC temperature sensors monitor thermal conditions in real time. When the temperature reaches a critical level, the system automatically reduces charging power to prevent overheating. These features help extend battery service life and improve operational safety.
Industrial-Grade Hardware Supports Stable Performance
A reliable charging station requires durable hardware that can operate continuously in demanding environments. Fully Hong applies industrial-grade PCB manufacturing technology to ensure stable performance and long-term reliability. The board uses a 4-layer FR4 PCB structure with 1.6mm thickness and 2oz copper, which helps reduce impedance and improve heat dissipation. Additionally, metal heat sinks on power components help maintain stable temperatures during high-load operation. The BMS board for drone charging station also includes EMI/EMC protection features, such as transient protection components on communication ports. These designs improve resistance against electrical interference and support reliable operation in industrial environments.
Key Advantages of Drone Charging BMS Board
- Eight-Channel Charging Output: Supports multiple drone batteries with independent power control.
- CC/CV Charging Management: Improves charging efficiency and protects battery health.
- Multi-Protocol Communication: Enables integration with monitoring systems and fleet platforms.
- Real-Time Battery Monitoring: Provides accurate voltage and charging status information.
- Industrial Reliability: Designed for continuous operation in demanding drone applications.
- Flexible System Integration: Supports API communication and customized management solutions.
Comparison of Communication Methods
| Communication Interface | Main Function | Application Advantage |
|---|---|---|
| RS485 | Long-distance monitoring and system integration | Suitable for multiple charging stations |
| UART | Direct connection with drone docking systems | Provides real-time charging updates |
| USB | Configuration and firmware management | Convenient local operation and maintenance |
| Modbus RTU | Industrial automation communication | Supports SCADA system integration |
Smart Battery Management for Future Drone Operations
As drone applications continue expanding, fleet operators need smarter and more reliable charging infrastructure. Battery management systems not only improve charging efficiency but also provide valuable operational data for better decision-making. The BMS board for drone charging station combines intelligent charging control, multi-interface communication, and advanced protection technologies to simplify drone fleet management. Its flexible design makes it suitable for logistics delivery drones, agricultural monitoring systems, security applications, and emergency response operations. With professional PCB manufacturing experience and reliable electronic solutions, Fully Hong helps customers develop advanced charging systems that improve drone availability, extend battery lifespan, and support the future growth of autonomous aerial technology.
