Cable & Wire Harness Assembly

Wire Harness and Cable Assembly

What Is a Wire and a Cable

A wire is a single strand of conductive material such as copper, aluminum, or tin.
A cable, on the other hand, consists of two or more wires bundled together, often braided or bonded.

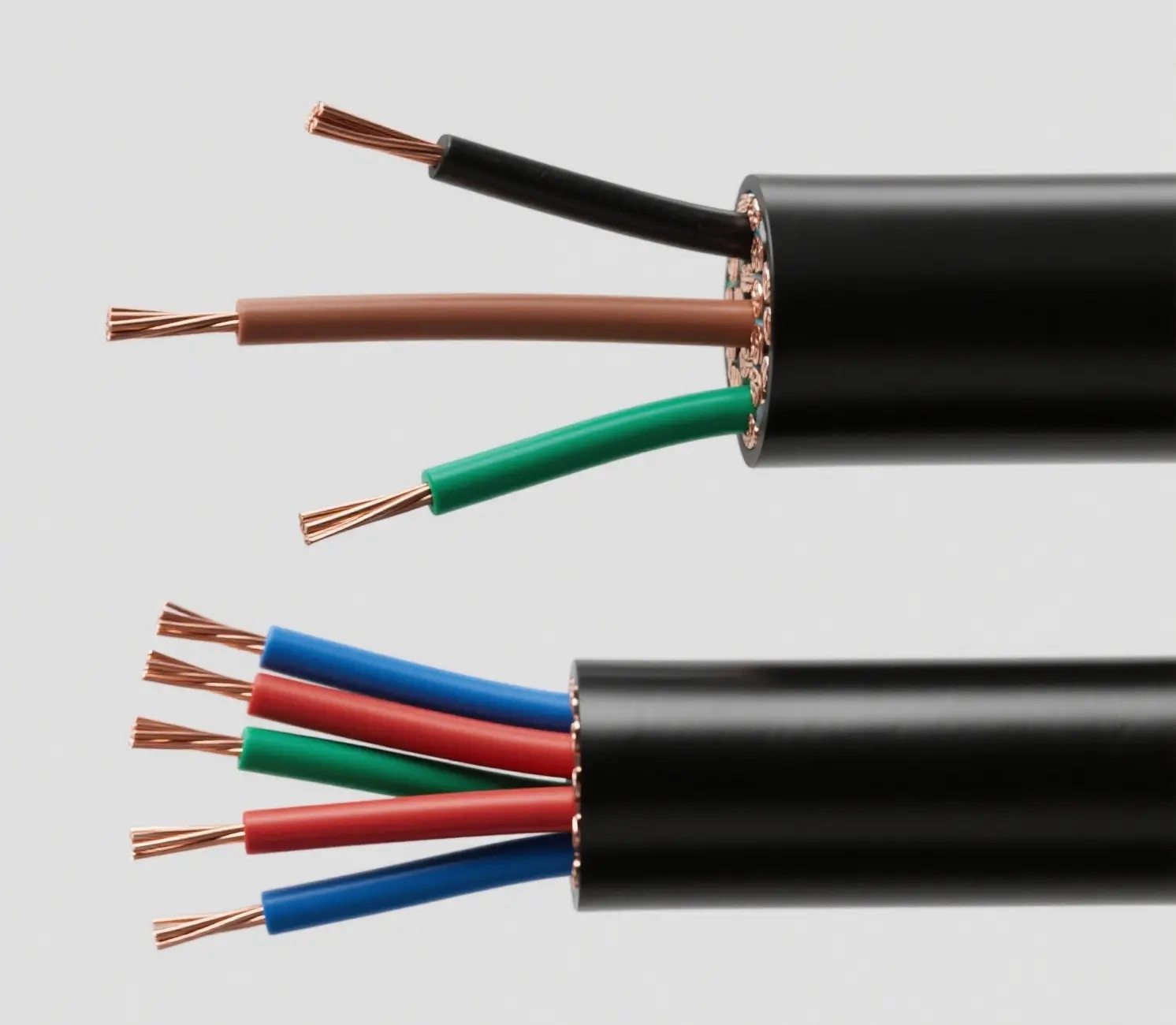

NFKDFDGFSdf (122)

What Is a Wire Harness and Cable Assembly

✅ Wire Harness

  • A simple outer sheath that holds together wires or cables.

  • Usually made from thermoplastic or thermoset material to provide basic protection.

  • Ideal for organizing internal wiring in controlled environments.

  • Limitations: Not designed to withstand extreme temperature, friction, or moisture.

✅ Cable Assembly

  • A more rugged, protective casing that encloses wires or cables.

  • Typically made from heavy-duty materials like vinyl or thermoplastic rubber.

  • Designed for harsh environments: heat, moisture, abrasion, vibration, etc.

NFKDFDGFSdf (105)

Key Differences Between Wire Harness and Cable Assembly

Application Environments

Feature Wire Harness Cable Assembly
Usage Internal use (PCs, electronics) Industrial or outdoor applications
Conditions Stable, dry, enclosed Harsh: dust, oil, temperature swings
Space Constraints Flexible, compact design Custom sizes and robust builds

Structure & Materials

Feature Wire Harness Cable Assembly
Sheath Light plastic or rubber wrap Heavy-duty thermoplastic or vinyl
Layers Thin external sheath over pre-insulated wires Fully enclosed, high-strength structure
Cost Low-cost solution Higher cost, more robust

Durability

  • Wire Harness: Limited durability; suitable for low-risk environments.

  • Cable Assembly: High durability; resists heat, pressure, moisture, and mechanical stress.

NFKDFDGFSdf (25)

NFKDFDGFSdf (36)

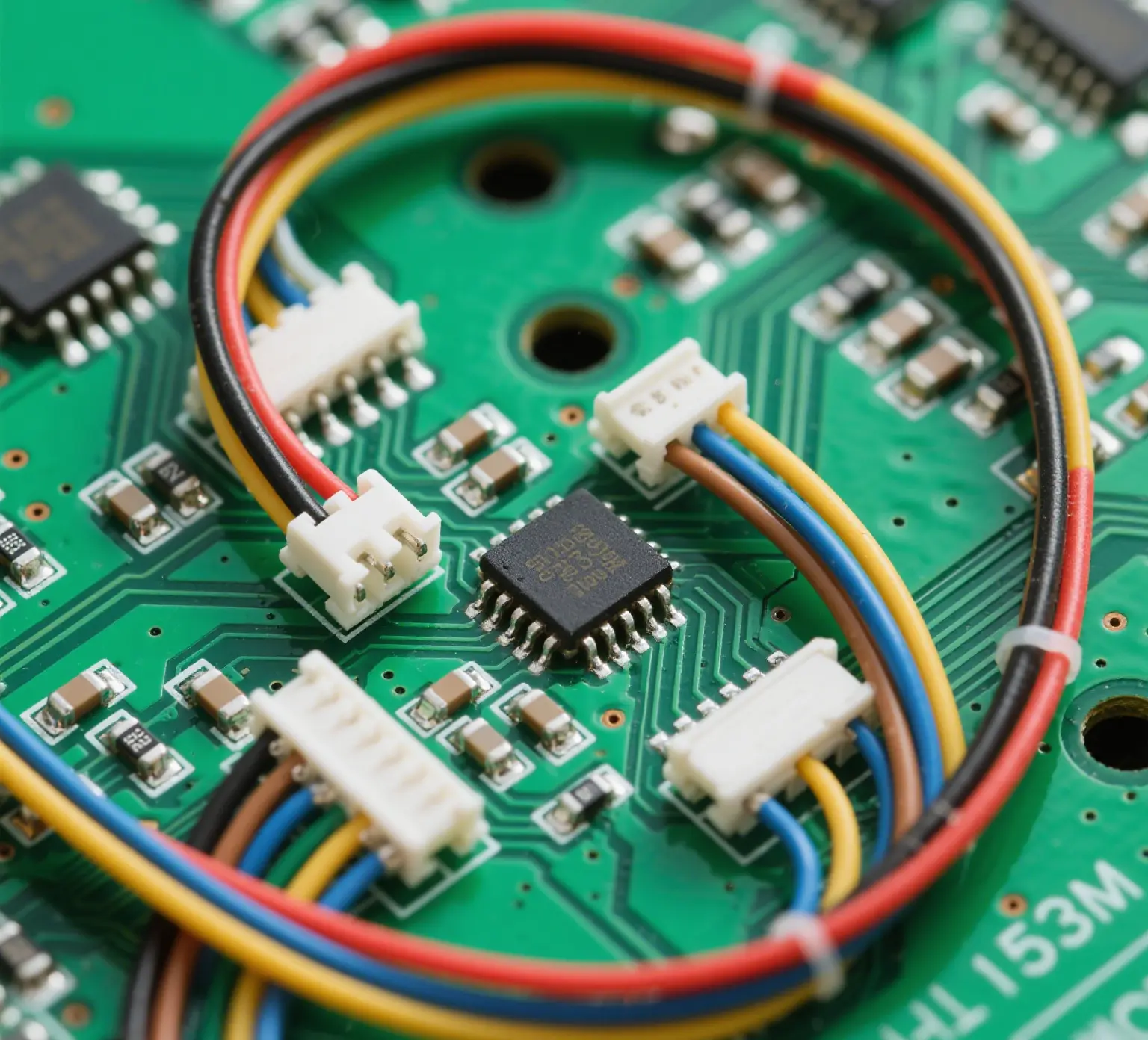

PCB Wire Harness Applications

🟢 PCB Wire Harness

  • Connects printer heads to the mainboard.

  • Also used in scanners, copiers, plotters, audio systems, IoT devices, etc.

  • Ensures stable signal transmission in modern electronics.

lianjeipcb



🔵 PCB Data Wire Harness

  • Built with pure copper core and quality plastic insulation.

  • Designed to transmit data signals within electronic and electrical devices.

🔴 PCB Power Wire Harness

  • Equipped with precision copper terminals and flame-retardant sheaths.

  • Connects AC power to PCBs via:

    • U-shape / O-shape terminals

    • Fast-plug connectors

  • One end is soldered to the PCB; the other may have a terminal.

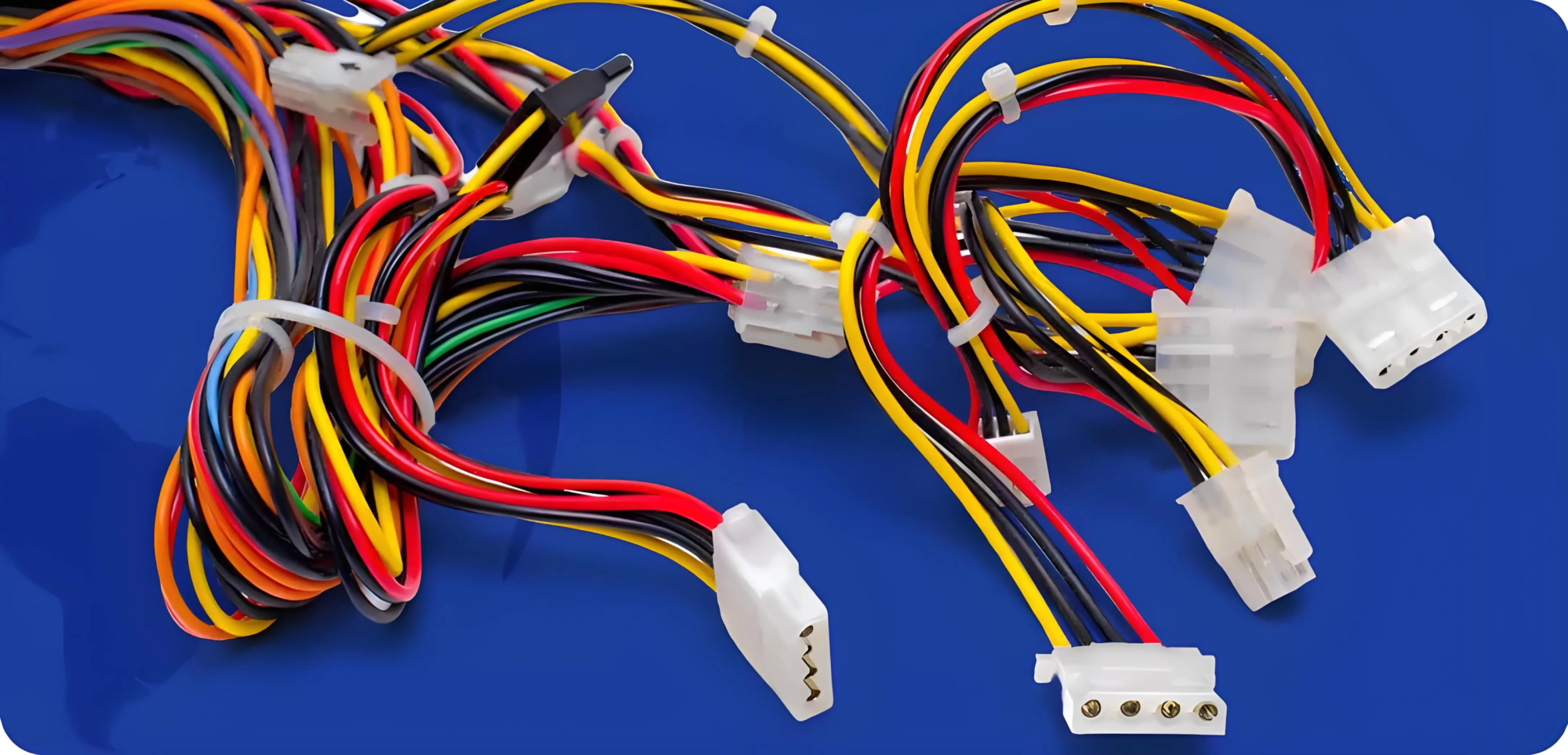

b015434109f5dab8078f05aafaaeb8a3

What Can Fully Hong Electronics Do for Your Wire Harness & Cable Assembly

Fully Hong Electronics specializes in PCB fabrication and assembly, including custom wire harness and cable assembly services.

Our Strengths:

✅ Reliable supply of UL-certified cables and wires

✅ Cost-effective sourcing through a strong global supply chain

✅ Skilled engineers and advanced equipment

✅ Capable of assembling simple to complex wire harness systems
